TiltWatch Plus, part of tilt indicator range, provides info during shipment on the presence or absence of a tilt, the angle of the tilt, and if a complete overturn has taken place. Mount simple and cost-effective TiltWatch Plus directly on products or packaging directly which effectively reduces damage upon delivery.
“If I switch from Tiltwatch Plus to Leaning Label Plus, will there be a problem?” Customers are always concerned about this. What happens if a consumer wants to use Leaning Label Plus, but is currently using Tiltwatch Plus? Is replacing the two brands problematic in any way? Let us start with specifications, usage methods and tests.
Leaning Label Plus is hereinafter called LL+ while TiltWatch Plus is hereinafter called TW+.
Top 2 Tilt Plus Indicator: Leaning Label Plus & TiltWatch Plus
When you do research into this market, TiltWatch Plus by Spotsee and Leaning Label Plus by WAN-YO are the most common to see in the market. The reason is the patent of the products so that competitors cannot move into the market easily. Certainly, an exclusion in the Chinese market due to the fragility of patent protection.
Here’s the spec table that some info cites from their official document. The major difference marks in RED. LL+ provides two 30 degrees detection since it has a ‘start’ section than TW+. The shelf life of LL+ is 1 year more.
|
Brand |
||
|
Appearance |
|
 |
|
MFG |
Spotsee |
WAN-YO |
|
Headquarter |
U.S. |
Taiwan |
|
Part Number |
24114 |
PL02 |
|
Activation Angle |
Tilt to Left 40°, 50°, 60°, 70°, 80° Tilt to Right 40°, 50°, 60°, 70°, 80° Overturn 180° |
Tilt to Left 30°, 40°, 50°, 60°, 70°, 80° Tilt to Right 30°, 40°, 50°, 60°, 70°, 80° Overturn 180° |
|
Tolerance |
±5° |
±5° |
|
Monitoring Range |
Single plane and rollover |
Single plane and rollover |
|
Temperature Tolerance |
-40°C to 60°C |
-40°C to 60°C |
|
Size |
116.84 x 116.84 x 7.62 mm |
120 x 120 x 7.7 mm |
|
Installation |
Pressure-sensitive adhesive exposed when liner and arming pin are peeled away |
Back Adhesive or with screws and nails |
|
Shelf Life |
1 year |
2 years |
|
Tampering |
YES |
YES |
|
Serialization |
YES |
YES |
|
Scan Type |
Barcode |
Barcode |
How to use a TiltWatch Plus label and LL+ tilt indicator?
Use both TW+ and LL+ in the same way.
- Peel off the back liner and Keep it upright.
- Place it in the lower corner and press firmly.

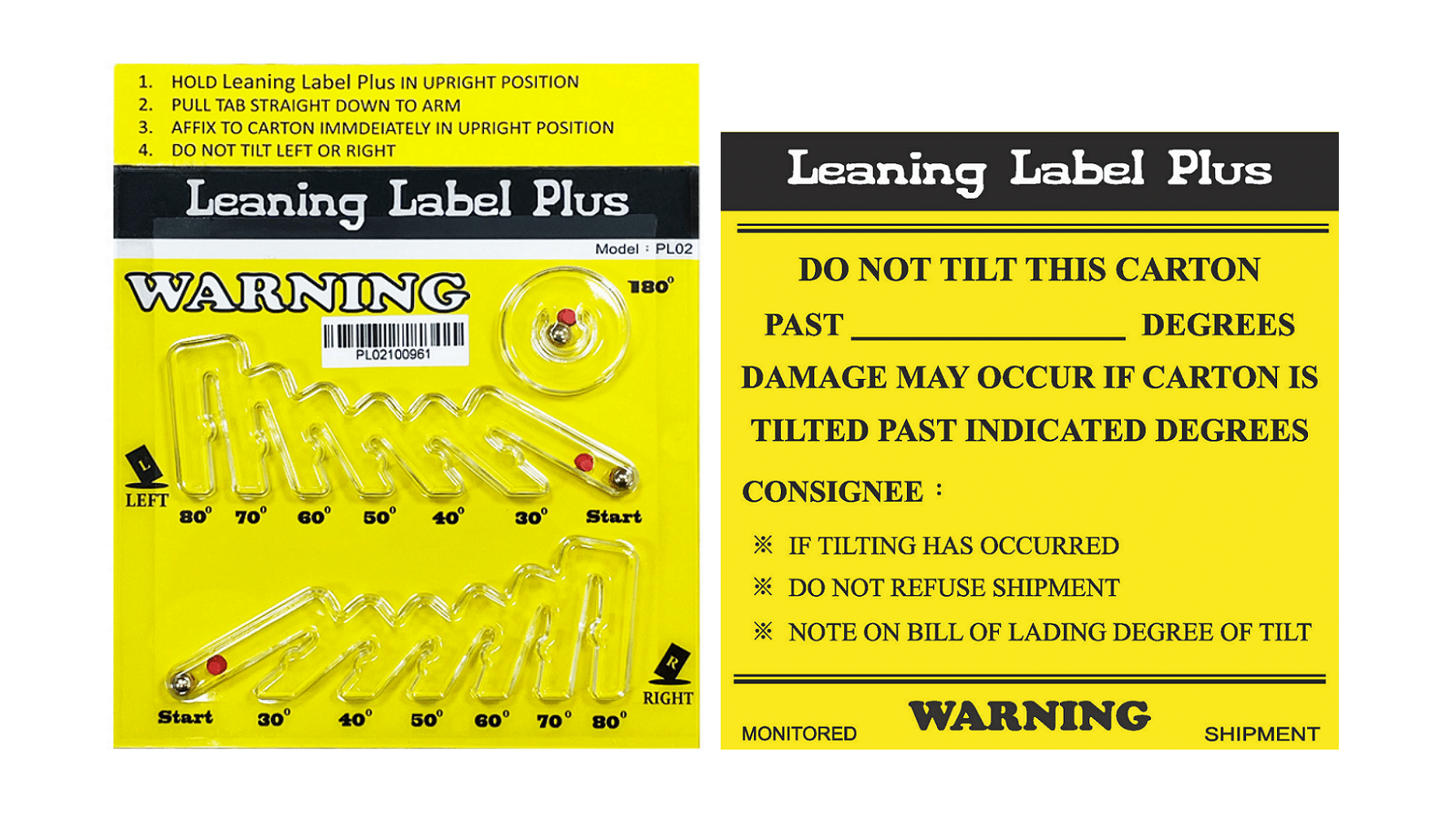

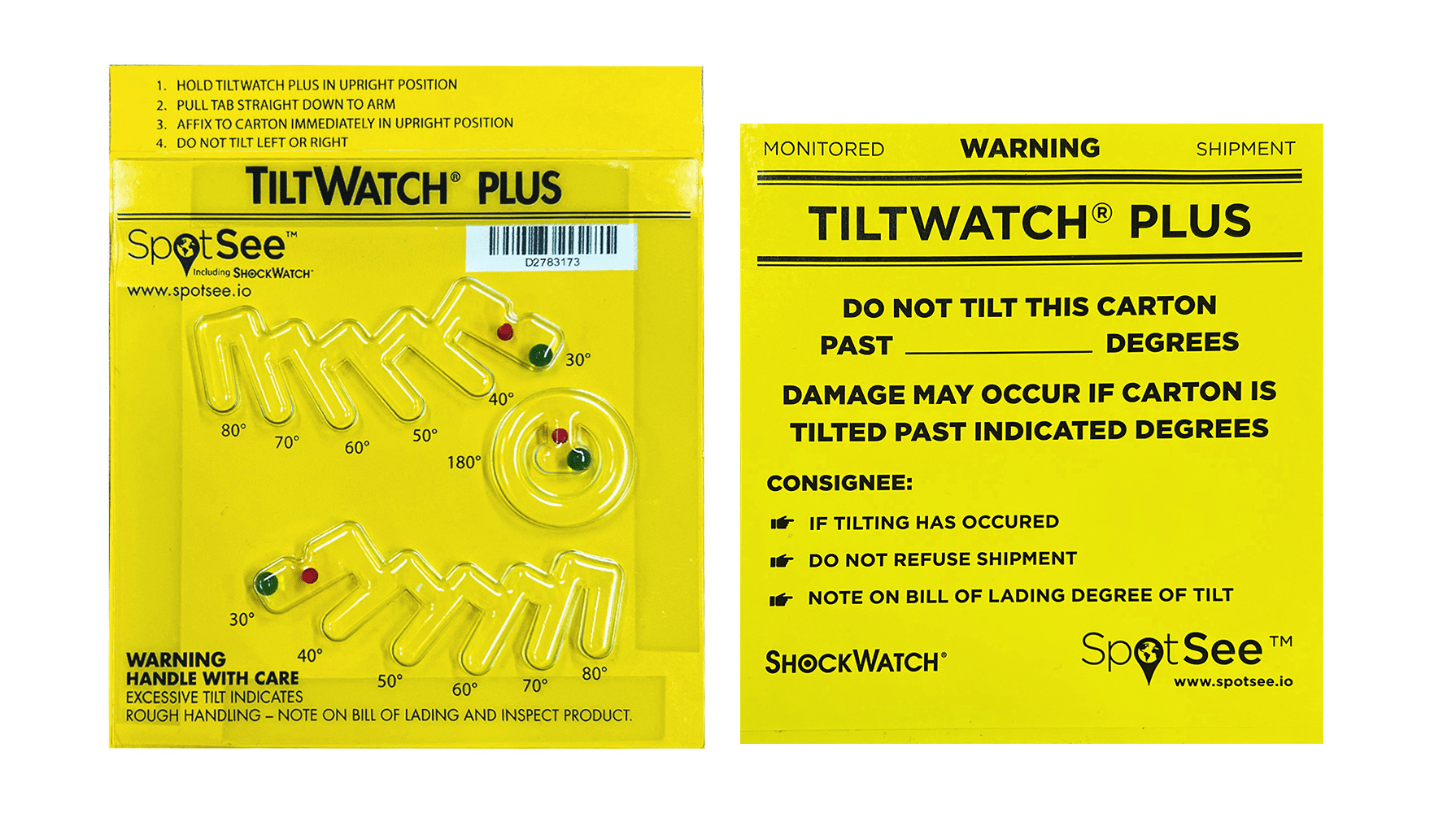

- Place the companion label next to the indicator and mark the unacceptable degrees.
One indicator monitors one plane of the container, so it’s highly recommended to place another indicator on the adjacent side of the one just applied to monitor all planes.
(The video will start at 125 sec. Turn on the subtitle.)
How does TiltWatch Plus and LL+ work?
Once the adhesive liners are removed, the TiltWatch Plus and LL+ are armed. When a shipment is tilted over 30°(for LL+)/40°(for TW+) or upended, the ball rolls into the next. Indicators will show the angle, direction of tilt and/or if upended by where the ball.
The start point of LL+ is below 30° degree, so it can distinguish if the shipment has been tilted over 30° degree, in the contrary, TW+ starts at 30° degree which can tell if it has been tilted over 40° degree.
The design seems simple, however, both TW+ and LL+ prevent tampering by hand. As you watched in the YouTube video, if someone tries to roll the ball back to the beginning, another ball rolls into the last which still indicates an unacceptable tilt level to the shipment. The material of the balls cannot be reset by magnet either. They can perfectly work in good order.
(The video will start at 89 sec. Turn on the subtitle.)
How do you read a TiltWatch Plus and LL+?
There are 3 separate indicators in an indicator: Two that determine the angle and direction of the tilt, and one that indicates whether a complete overturn has occurred.
Indicators show the angle, direction of tilt and/or if upended by where the ball. For example, you see the ball is at 80° degree which means this shipment is tilted over 80° degree, meanwhile, you need to check what degree is indicated on the companion label, and you need to mark on the bill of lading before receipt if the shipment has been tilted past indicated degrees.
(The video will start at 182 sec. Turn on the subtitle.)
Switch to Leaning Label Plus (LL+) with Confidence.
Are you currently using TiltWatch Plus for your shipment protection needs? Wondering if you can seamlessly transition to Leaning Label Plus? Look no further!
From most current customers’ point of view, as long as the tilt indicator meets “works well”, “reasonable price“ and “same functionality” it becomes the first choice in mind.
LL+ Functionality & Effect
From specification, usage to testing, Leaning Label Plus works well as Tiltwatch Plus. Considering the aspect of this, it will not cause problems if you change directly. You will have two extra 30° degree detection and monitoring for each shipment.
TiltWatch Plus Price & Leaning Label Plus Price
According to our market study, TiltWatch Plus price is around USD $2.3 – $5.7. Contact us for more details about the special prices of Leaning Label Plus or other brands.
|
MFG |
Product Name |
Price (USD) |
|
Spotsee |
TiltWatch Plus |
$2.3 – $5.7 |
|
TiltWatch |
$2 – $3 |
|
|
WAN-YO |
Leaning Label Plus |
Contact us for a Special Price |
|
Leaning Label |
Contact us for Special Pricing on Leaning Label Plus and Make the Switch Today!
Still, have questions? Check out our FAQ section below or reach out to our team for personalized assistance.
| ↓Free Testing Support↓ | ↓Exclusive Price↓ |
| Get Free Samples Today | Get Your Price Today |
FAQ
Can the TiltWatch Plus tilt indicator and Leaning Label Plus be reset?
Once the indicators are placed and affixed to the shipment, they cannot be reset in any other way. However, if users accidentally move a ball, restore the ball to an earlier good condition and restore the release liner to the back.
What is TiltWatch Plus tilt indicator?
TiltWatch Plus tilt indicator indicates whether there has been tilt to the left or right, how many degrees, as well as rollovers has occurred. TiltWatch Plus provides 360° monitoring for tilt detection using three separate tip sensors.
Will TiltWatch Plus tilt indicator and LL+ be activated before use?
No. The indicator will be armed once the adhesive liners are removed. There’s no activation issue during shipment except for defective product.
What is your lead time for LL+?
Normally 2-3 days. If you acquire more than 20,000, contact the sales for more details.
