Leaning Label 【Tilt Indicator】

PRODUCT FEATURE

  • VISUAL DETERRENT & ALERT HANDLERS
    80° Tilt Monitor Keeps Watch Over Entire Journey As If You Supervised
  • MONEY-SAVING, TIME-SAVING, EFFORT-SAVING
    Reduces Transportation-Caused Damage, Liability, Cost, and Increase Integrity of Product. Help Inspect Contents Before Acceptance or Storage
  • ALL IN ONE SYSTEM
    Warn, Detect, Indicate, Monitor,  Track from Warehouse to Destination
  • LOGISTICS & HANDLING PROTECTION
    Pinpoint Cargo Damage, Indisputable Evidence of Mishandling for Freight Claims, or Repeated Mishandling
  • MECHANICAL OPERATION & SIMPLE TO USE
    No Electric Power Required, Only Peel and Stick
  • TAMPER PROOF & AUTHENTICITY
    Unique Serial Number to Verify Authenticity and Manage Product Conveniently
  • ISO 9001:2015 CERTIFICATION & OEM SERVICE
    Certified International Quality Assurance Control

Product page – 6 tabs

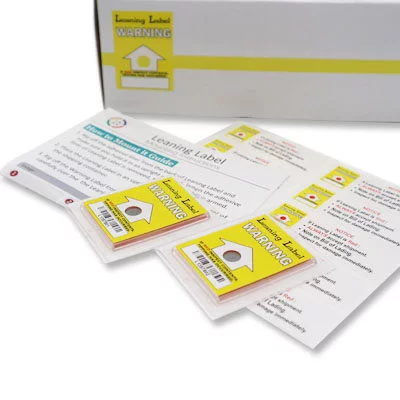

Leaning Label Tilt Indicator

Leaning Label is a single-use tilt indicator label, 100% manufacture in Taiwan. For the cargo that must keep upright, the indicator monitors for improper tilt handling and ensures the integrity of your product.

What is Leaning Label Tilt Indicator?

How Do Indicator Labels Help?

The indicator labels spot concealed shipment damage at the time of receipt of delivery. When a shipment is tilted or overturned during transport, a display window in the middle of the shipping tilt indicator changes from silver to red, which handlers can easily tell the goods has been improperly transported and respond to shipper accordingly.



Activation View -  Leaning Label 【Tilt Indicator】

Activation View
WAN-YO Leaning Label Tilt Indicator



When to Use?

The Leaning Label is the earliest and simple shipping tilt indicator to detect a tilt angle of 80°. If you demand the following conditions, Leaning Label is your first choice.

  1. Liquid cannot flow from a container.
  2. Product is top-heavy-bottom-light or with uneven weight and structure.
  3. Item must keep upright during transit.
  4. Fragile goods
  5. Large equipment
  6. Export/Import goods by pallet/plywood crate



No Idea of Selecting Suitable Leaning Label Tilt Indicators?

We recommend you contact us to discuss your application so that we can assist you in choosing the correct tilt indicators for you or if you wish to purchase over a thousand.

2 STEPS TO SELECT SPECIALITY CONSULT



Specification

Product name
Leaning Label
Dimension
75 x 60 x 5 mm
Activated Angle
≥80°
Detecting Range
One Label: 180° (degrees) detection
Two Labels: 360° (degrees) detection
Tolerance
±5°
Operating Humidity
5% to 99%
Operating Temperature
-40°C to 60°C (-40°F to 140°F)
Composition
Steel sheet and high density polyethylene
Installation
Back Adhesive or with screws and nails
Shelf Life
2 years

Accessory

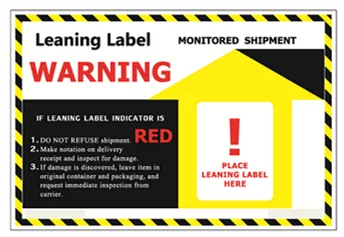

Companion Label

Length x Width: 197 x 134 mm
Functions & Notes :

  1. Drawing the Attention of a delivery man
  2. Clearly indicate the Processing Steps for activated the label ( Turn Red )

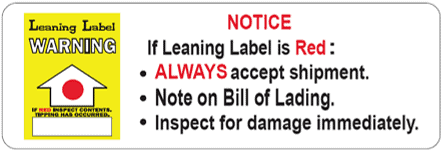

Alert Sticker

Length x Width: 76 x 25.5 mm

Functions & Notes:

  1. Place the alert sticker on Bill of Landing.
  2. Clearly indicates the processing steps for an activated label (Turn Red).

Companion Label

Length x Width: 197 x 134 mm
Functions & Notes :

  1. Drawing the Attention of a delivery man
  2. Clearly indicate the Processing Steps for activated the label ( Turn Red )

Alert Sticker

Length x Width: 76 x 25.5 mm

Functions & Notes:

  1. Place the alert sticker on Bill of Landing.
  2. Clearly indicates the processing steps for an activated label (Turn Red).

Indicator Placement (Please reload the page if the display is blank.)

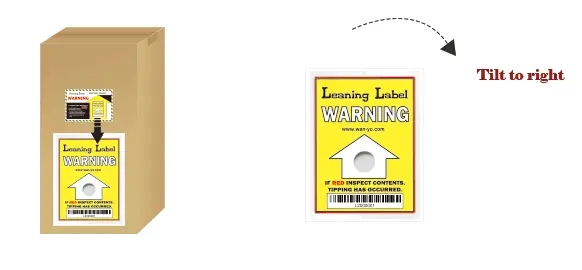

How to Use Leaning Label?

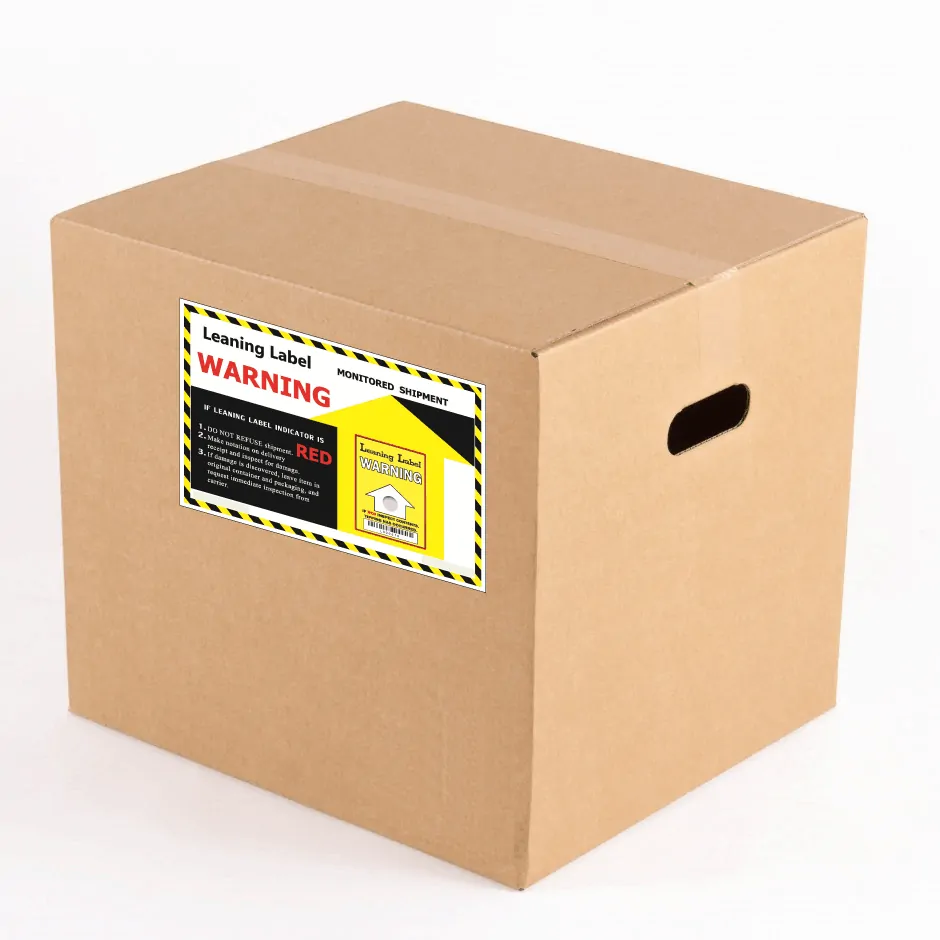

  1. Apply the Companion Label on the correct position
  2. Rip off the safety seal of the Leaning Label, the tilt indicator will start detecting tilt angles ( Note: Keep Leaning Label Upright after ripping off the seal )
  3. Place Leaning Label on the White Area of the big yellow arrow
  4. Apply the Alert Sticker on the bill of lading to remind handlers that the shipments are with Leaning Labels (tilt indicators)

※ Suggestion: Place 2 Pieces Leaning Label Tilt Indicators on Adjacent Sides to Monitor Comprehensively.

Why You Need 2 Tilt Indicators For 1 Cargo?

Patent

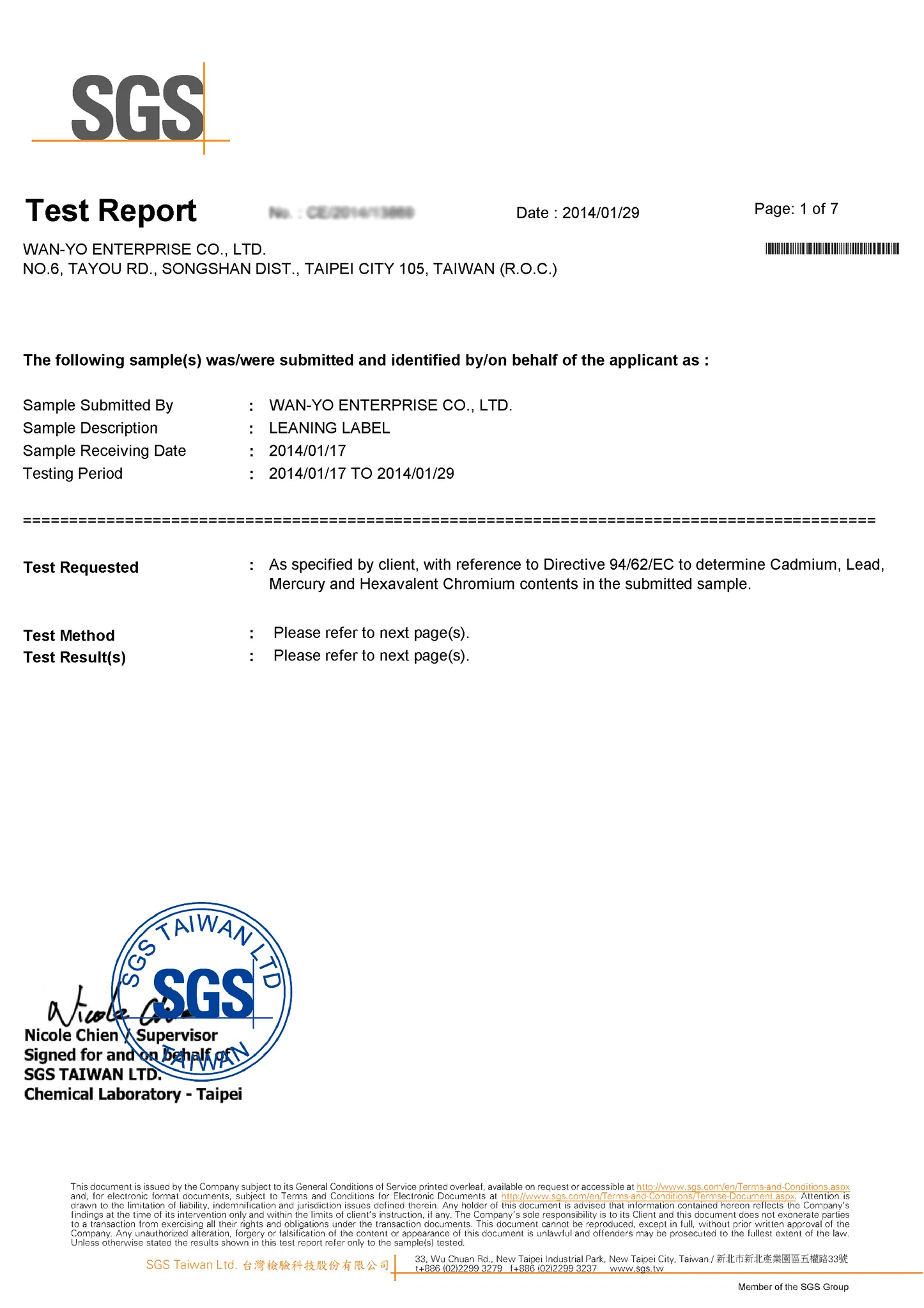

SGS report

Brochure

Catalog
Specification sheet
Selection guide

Our Recommendation

Besides shock indicator, we have tilt indicator, pallet cushion to give you a hand. Check what we can do for you!
