Impact Label 25G 【Impact Indicator】

  • All in One System: Warn, Detect, Indicate, Monitor and Track
  • Reduces Shipping Damage by 70%
  • A Cost-Efficient Packaging Solution
  • Promotes a Better Corporate Image
  • Find Out the Reason for the Damage
  • Description
  • Specification
  • Instruction
  • Application
  • Document
  • Download

Description

Impact Label 25G is an impact indicator label, designed to provide better monitoring and detect shock vibration and track goods or products during transit or in storage. Once the goods with the Impact Label 25G have dropped or are impacted, the middle window of the Impact Label 25G will change to red, indicating damage to the product.



Activation View -Impact Label 25G 【Impact Indicator】

Activation View
Impact Label 25G 【Impact Indicator】

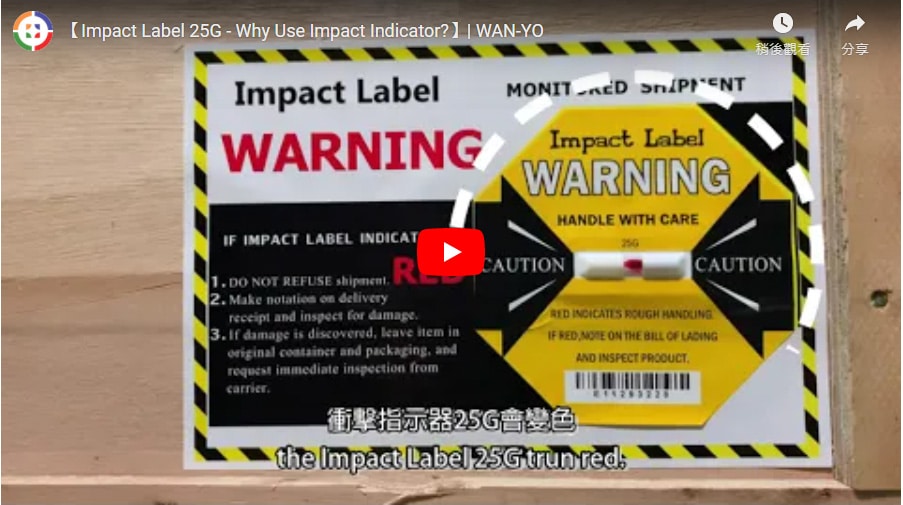

【Impact Label 25G - Why Use Impact Indicator?】| WAN-YO

Impact Label 25G
What is Impact Indicator, and why?



Most handlers pay more attention to goods with impact indicators to avoid trouble. The aim to deliver packages with the impact indicator successfully to reduce the possibility of damaged goods.

The Impact Label 25G is the most sensitive way to detect small impact force, 25g acceleration. Once goods are slightly impacted, the indicator will activate and make indicate to the handler of any damage occured.

When to use?

If you meet one of the following 7 situations, Impact Label 25G is your best choice.

  1. Fragile goods
  2. The total weight is extremely heavy.
  3. Large volume after packing
  4. Slight collision could ruin or damage your goods.
  5. Your goods cannot fall more than 15-30 cm.
  6. Wooden crate packaging
  7. Unable to be moved on hand

Specification

Product name
Impact Label 25G
Dimension
97 x 97 mm
Sensitivity
25G
Tolerance
± 15%
Reaction time
0.5 – 50 ms
Operating temperature
-25°C to 80°C (-13°F to 176°F)
Installation
Back adhesive
Shelf Life
2 years

Accessary

Warning Label

Length x Width: 197 x 134 mm

Functions & Notes:

  1. Draws attention to the handlers.
  2. Clearly indicates the processing steps for an activated label (turned Red).

Small Warning Sticker

Length x Width: 76 x 25.5 mm

Functions & Notes:

  1. Stick the small warning sticker on Bill of Landing.

Warning Label

Length x Width: 197 x 134 mm

Functions & Notes:

  1. Draws attention to the handlers.
  2. Clearly indicates the processing steps for an activated label (turned Red).

Small Warning Sticker

Length x Width: 76 x 25.5 mm

Functions & Notes:

  1. Stick the small warning sticker on Bill of Landing.

How to use Impact Label 25G?

  1. Apply the Warning Label in the correct position
  2. Tear off the Impact Label 25G and apply it on the Yellow Area of the warning label
  3. Place the Small Warning Sticker on bill of lading as a reminder that goods with shock indicators will immediately be inspected upon arrival.

※ Suggestion: Stick 2 Impact Labels 25G on the Opposite Corners for Large Goods.

Patent

SGS report

Brochure

Catalog
Specification sheet
Selection guide

Our Recommendation

Besides shock indicator, we have tilt indicator, pallet cushion to give you a hand. Check what we can do for you!
