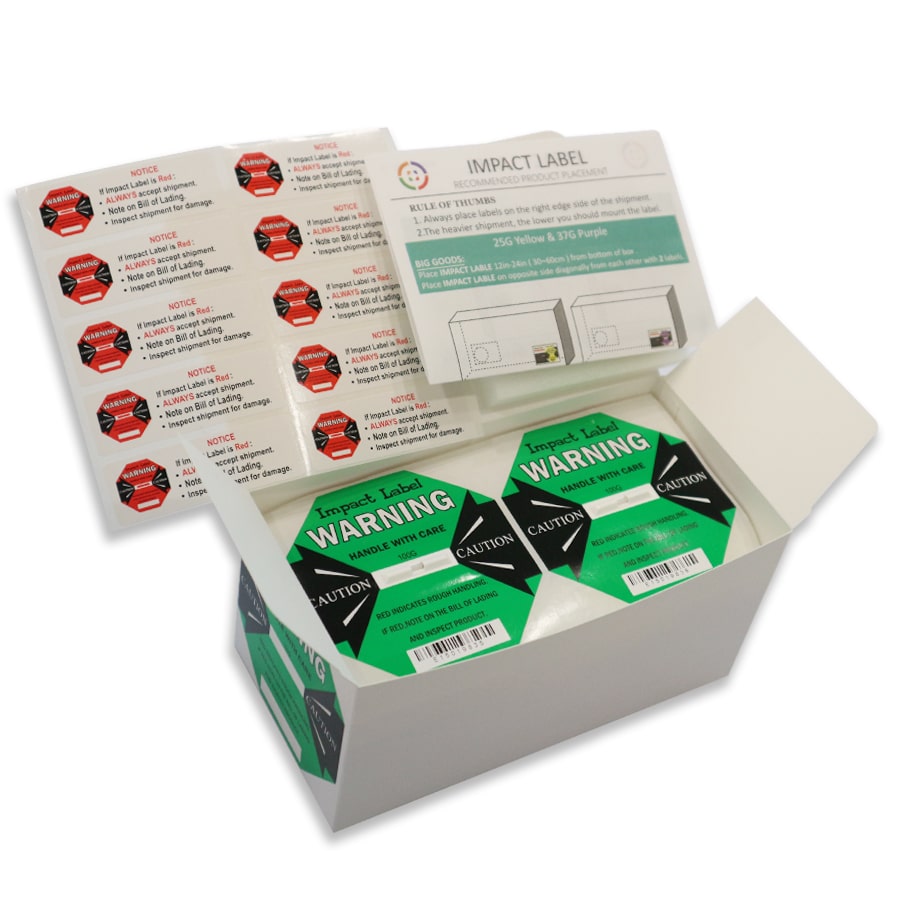

Impact Label 100G 【Shock Indicator Labels】

  • All in One System: Warn, Detect, Indicate, Monitor and Track
  • Reduces Shipping Damage by 70%
  • A Cost-Efficient Packaging Solution
  • Promotes a Better Corporate Image
  • Find Out the Reason for the Damage
  • Description
  • Specification
  • Instruction
  • Application
  • Document
  • Download

Description

Impact Label 100G are mechanically-activated and single-use shock indicator labels with an indicator window. This deters mishandling and reduces damage by indicating when fragile products have been exposed to a potentially damaging impact during transit or in storage.



Activation View - Impact Label 100G 【Shock Indicator Labels】

Activation View
Impact Label 100G 【Shock Indicator Labels】



What is Shock Indicator Label, and why? | Impact Label 100G | WAN-YO

Impact Label 100G
What is Shock Indicator Label, and why?



Each shock indicator Impact Label comes with an independent serial number to avoid tampering with an activation label and ensure the device has not been switched during transport. The serial number is helpful and convenient for use with GTS (Goods Tracking System) to track the goods and shipments.

The shock indicator labels 100G recommends applying it on the packaging with well-protection capabilities.

When to use?

If you meet the following situations, Impact Label 100G is your best choice.

  1. Goods can be handled by a person.
  2. The product is very impact resistant to a certain extent
  3. Your goods cannot bear to fall from more than 90cm

Specification

Product Name
Impact Label 100G
Dimension
97 x 97 mm
Sensitivity
100G
Tolerance
± 15%
Reaction Time
0.5 – 50 ms
Operating Temperature
-25°C to 80°C (-13°F to 176°F)
Installation
Back Adhesive
Shelf Life
2 Years

Accessary

Warning Label

Length x Width: 197 x 134 mm

Functions & Notes:

  1. Draws attention to the handlers.
  2. Clearly indicates the processing steps for an activated label (turned Red).

Small Warning Sticker

Length x Width: 76 x 25.5 mm

Functions & Notes:

  1. Stick the small warning sticker on Bill of Landing.

Warning Label

Length x Width: 197 x 134 mm

Functions & Notes:

  1. Draws attention to the handlers.
  2. Clearly indicates the processing steps for an activated label (turned Red).

Small Warning Sticker

Length x Width: 76 x 25.5 mm

Functions & Notes:

  1. Stick the small warning sticker on Bill of Landing.

How to use Impact Label 100G?

  1. Apply the Warning Label in the correct position
  2. Tear off the Impact Label 100G and apply it on the Yellow Area of the warning label
  3.  Place the Small Warning Sticker on bill of lading as a reminder that goods with shock indicators will immediately be inspected upon arrival.

※ Suggestion: Stick 2 Impact Labels 100G on the Opposite Corners for Large Goods.

Patent

SGS report

Brochure

Catalog
Specification sheet
Selection guide

Our Recommendation

Besides shock indicator, we have tilt indicator, pallet cushion to give you a hand. Check what we can do for you!
