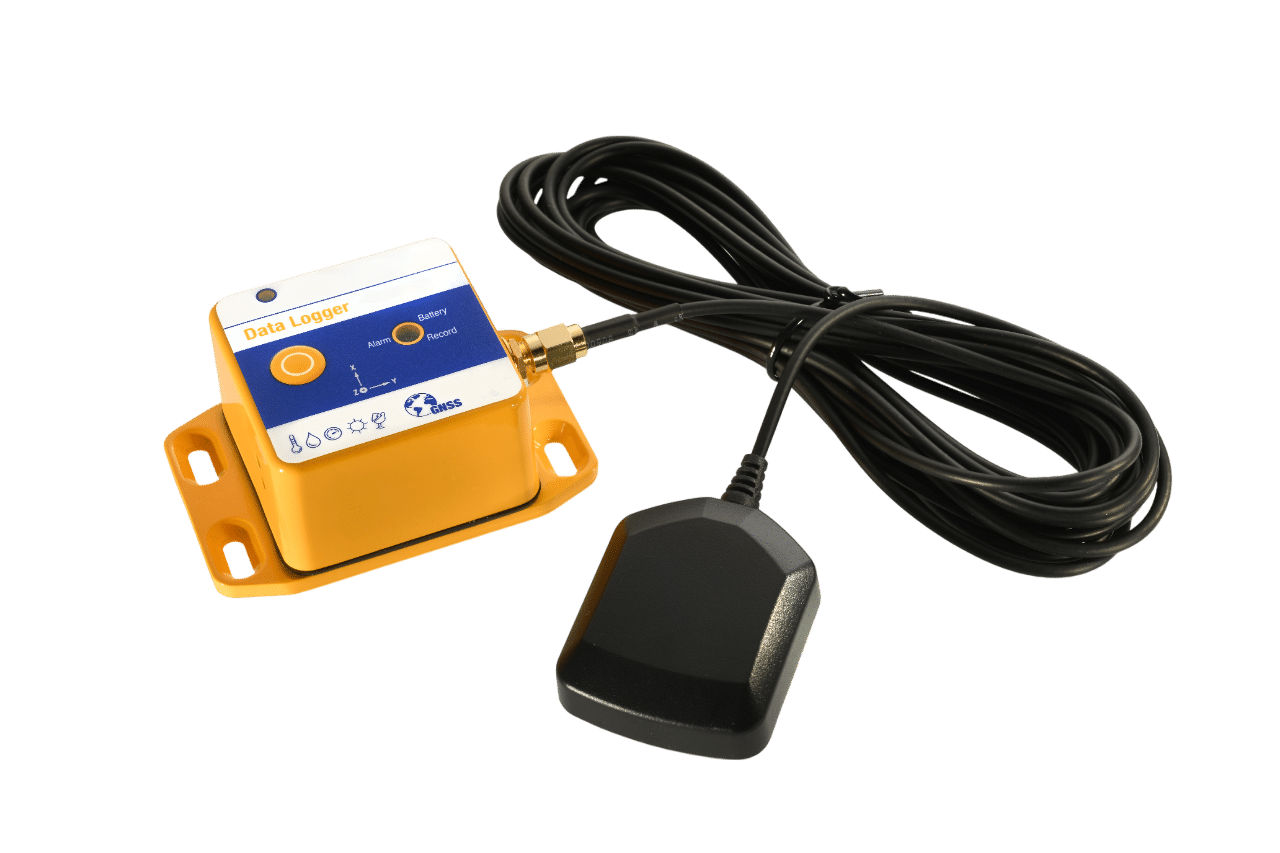

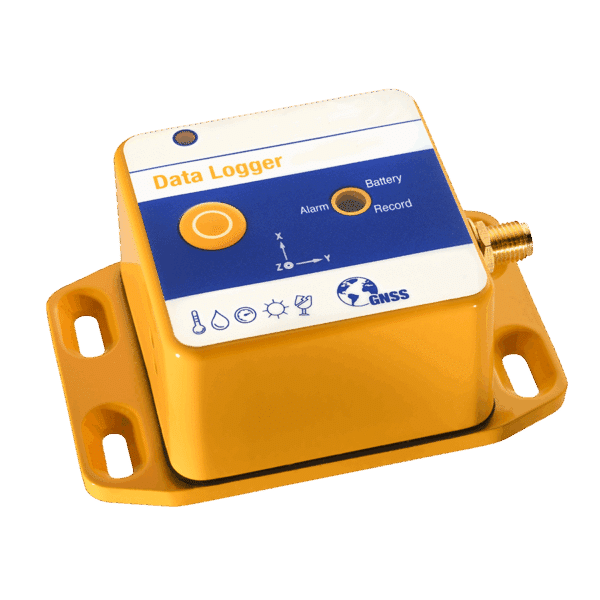

Transport Data Logger 6in1

6in1 Transport Data Logger for Shipping Monitoring

This advanced 6in1 Transport Data Logger is expertly engineered to capture potentially damaging shock/impact events and precisely log their geographical location during transit or storage. Acting as a comprehensive Shipping data logger, it also meticulously monitors critical environmental parameters, including shock/impact, temperature, humidity, air pressure, and light, providing an exhaustive overview of the conditions your goods experience throughout their journey. This robust device serves as an indispensable tool for ensuring compliance with transport specifications and offers crucial data for liability identification and expediting insurance claims in the event of damage

【Key Features Stand Out to Others】

• Robust Construction and Tamper-Proof Design
  The device is a robust mini data logger, featuring a tamper-proof design and encased in encapsulated PC material, offering IP 65 water resistance, making it highly suitable for demanding transport environments.
• Integrated Environmental Sensors
  Temperature Data Logger: Temperature curves within a working range of -20～+65 °C, logged every 10 minutes.
  Humidity Data Logger: Relative humidity from 0～100 %, logged every 10 minutes.
  Air Pressure Data Logger: Air pressure from 0～2000 mbar , with data stored every 10 minutes.
  Light Data Logger: Ｌight levels up to 83,000 lx with maximum sensitivity at 550 nm, recorded every 10 minutes.
  GPS/GNSS Tracker: Store satellite-supported position data (GPS, with optional GLONASS, Galileo, Beidou support for GNSS), enabling rapid determination and documentation of where an event took place in the event of damage.
  Shock & Impact Dual Range Detection
  Two internal 3-axis-acceleration sensors that simultaneously record shocks across two distinct measuring ranges: ±15 g and ±200 g. This dual capability ensures the detection of both light shocks and strong impacts. The shock measurement mode operates at a high measurement/storage rate of up to 6400 times per second for the ±200 g sensor and 1600 times per second for the ±15 g sensor.

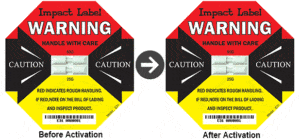

  ALSO FEATURED: WANYO Exclusive Low-Cost Dual Impact Label Shock Indicators

• Extensive Memory and Power
  Memory capacity of over 4,000,000 measurement values, including over 1,000 shock or impact events. 2400 mAh LiPo-battery, rechargeable via a USB. The battery can provide approximately 8 weeks of recording time with activated GPS tracking or at least 1 year without GPS tracking.
• FREE PC Software
  Dashboard software: For easy and intuitive configuration of the data logger and quick data transfer via USB.
  ReportGenerator: For generating compact reports from recorded data with a single click.
  Shock Analysis: Provides extensive analysis and representation options for detailed measured data analysis.

How Does Shipping Data Logger Help?

• Risk Mitigation and Compliance:
  By meticulously capturing damaging shock events and environmental deviations, the logger helps ensure compliance with stringent transport specifications. This proactive monitoring assists in identifying potential issues before they lead to significant damage, thus avoiding undetected transport damage.
• Liability and Claims Support:
  It provides indispensable data for identifying liability in the event of damage and offers crucial support for insurance claims. The precise geographical position data, recorded by the GPS/GNSS receiver, helps quickly locate when and where an event occurred outside preset tolerance limits.
• Enhanced Visibility and Accountability:
  Users gain clear visibility into the conditions their goods experience during transit or storage. This detailed data allows for informed decisions regarding packaging optimization and shipment route optimization using GPS data. It provides a clear picture of damaging events.
• Efficient Data Analysis:
  The accompanying software suite streamlines the entire process from configuration to detailed analysis. The Dashboard facilitates quick setup, the ReportGenerator provides instant summaries, and the ShockViewer allows for in-depth investigation of recorded data, including mapping critical events along the transport route. This allows users to view potentially damaging transportation events such as shocks, jolts, extreme temperatures, humidity conditions, air pressure fluctuations.

Looking for Transport Logger? Gain complete control over your shipments!

We recommend you contact us to discuss your application so that our team can assist you or if you wish to purchase a large number.
